New Generation

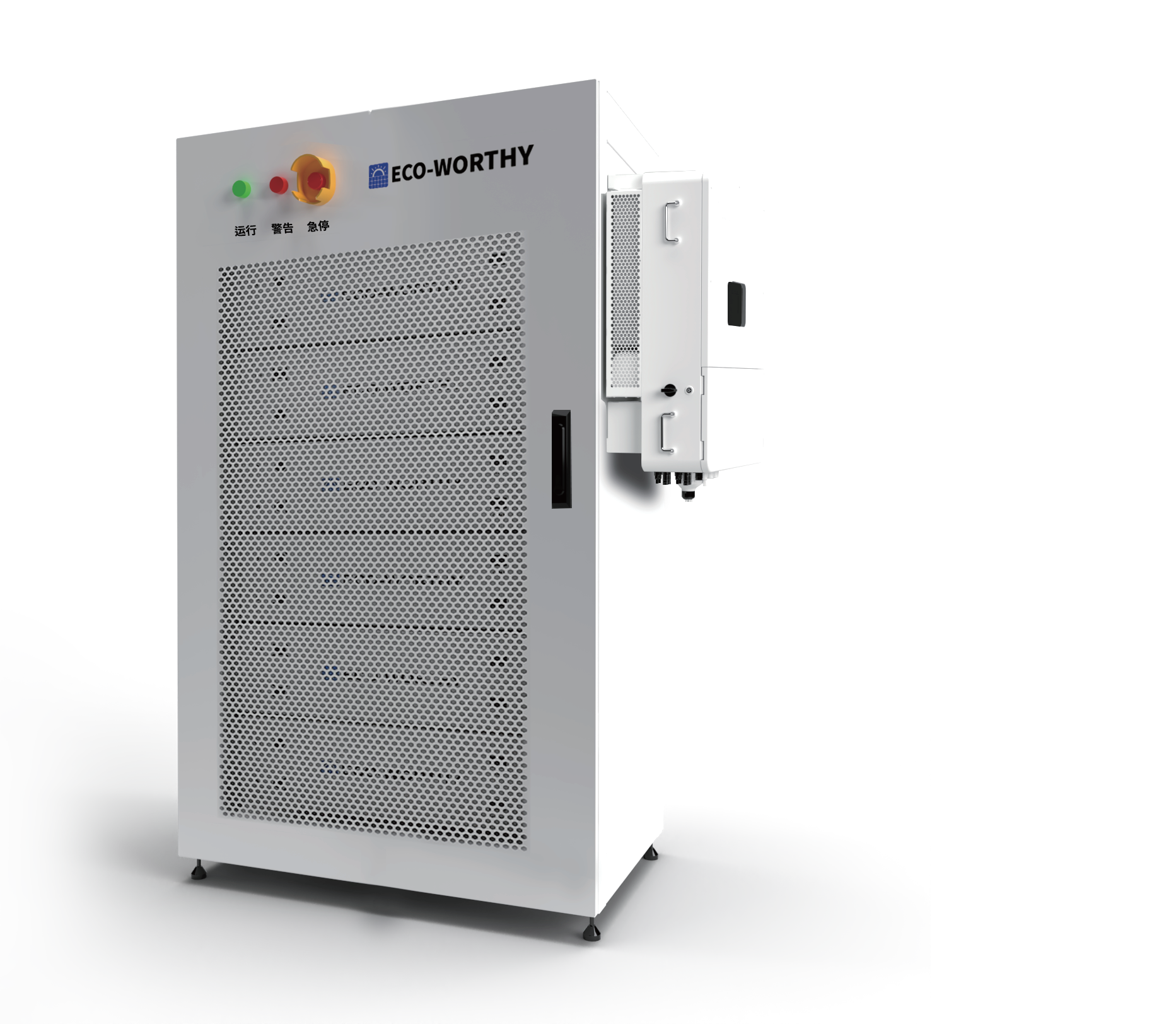

307.2V 205AH

Redefining Home Energy. Extended Endurance, Smart Connectivity.

Product Information

BMS ProtectionOvercharge/Over-discharge Protection, Charge/Discharge
Over-current Protection, Short-circuit Protection, Battery
Voltage Self-balancing, High-temperature Discharge Cut-off.
High Capacity and LightweightCompact size and ideal choice for indoor or commercial power supply.
Wide Range of ApplicationsIt is suitable for off-grid or hybrid systems, household and commercial
appliances.
Long LifespanCan be cycled up to 6000 times.
Easy InstallationSupports floor-standing, rack-mounted installation.
Multi-Brand CompatibilityCompatible with multiple inverter protocols from various brands,
and can communicate directly with computers.
Capacity ExpansionUp to 6 units can be connected in series, expandable to 62.97kWh.
Smart ControlECO-WORTHY APP.

Parameters

Model 307.2V 205AH
Nominal Voltage 307.2V
Nominal Capacity 205Ah
Nominal Energy 62.97kWh
Battery Type LFP
Cycle Life 6000(80%DOD, 0.5C, 25°C)
Number of Units in Series 6 units
Charge Cut-off Voltage 350.4V
Discharge Cut-off Voltage 259.2V
Standard Charge Current 100A
Maximum Charge Current 200A
Standard Discharge Current 100A
Maximum Discharge Current 200A
Dimensions 650 * 700 * 1400mm
Weight 580kg
Communication CAN/RS485
Charging Temperature Range 0°C~55°C
Discharging Temperature Range -20℃~60℃
Cooling Method Natural Cooling
Protection Built-in Smart BMS
IP Rating IP30
Warranty 5 Years
Certification MSDS, UN38.3, CE-EMC, IEC62619

Download

Documentation
Lithium Battery User Manual
